Industrial manipulators

mirus

The evolution of the rigid arm beyond standard limits.

ATISmirus manipulators, designed and manufactured entirely in Italy, surpass the limitations of traditional counterweight systems thanks to a low‑inertia parallelogram mechanism that ensures exceptionally smooth handling and precise control.

The elimination of passive masses enables an immediate response to the operator’s commands and allows the handling of complex or offset loads with minimal physical effort and maximum safety.

The rigid‑arm structure provides absolute stability even during the most demanding cycles, eliminating oscillations and ensuring accurate positioning of any product.

Furthermore, thanks to exclusive horizontal anti‑drift micro‑adjustments, the operator can keep the load perfectly stable, achieving excellent manoeuvrability in every direction.

Each ATISmirus is a customized zero‑gravity system, developed according to the available space, plant layout, and the customer’s production requirements. All systems comply with safety regulations and contribute to increased ergonomics, productivity, and operational efficiency.

ATISmirus: bespoke anti‑gravity technology for your company.

mirus-500-ATIS-senza-filo

Key Features of ATISmirus

  • Versatile
    Handling

    Ability to move products in any direction, including offset loads, without constraints.

  • Customized
    Equipment

    Integration with gripping tools designed specifically for the customer’s needs.

  • Precise
    Movements

    Manual or pneumatic movements for optimal control during the handling cycle.

  • Advanced
    Ergonomics

    Design that follows the operator’s movements, reducing effort and enhancing safety.

  • Easy
    Installation

    Pneumatic power supply, with no need for electrical connection, for quick setup.

  • Multiple
    Configurations

    Available in various setups (fixed column, self-standing baseplate, wheeled base, overhead fixed or sliding) to suit any work environment.

Features

  • Operation

    Pneumatic only

  • Motion Transmission

    Parallelogram and terminal arm

  • Execution

    column fixed to the floor, column on self-standing baseplate, fixed overheadt, sliding overhead on rails

  • Power supply

    compressed air 0.5÷0.8 MPa (clean, dry, oil-free)

  • Column axis

    continuous 360° rotation

  • Intermediate axis

    max. 300° rotation

  • Noise level

    <70 dB

Products in the range

  • ATISmirus-80

    Technical specifications

    • Max capacity

      115 Kg

    • Max working radius

      3100 mm

    • Vertical stroke

      1500 mm

    • Offset loads

    mirus 80

    Pneumatic manipulator with articulated rigid arms, the smallest in its category.
    Designed for handling lighter loads with particular shapes, it is ideal for high-frequency work cycles.
    Lightweight, precision, and speed are the key features of this manipulator.
    It can be equipped with customized gripping tools, designed and built according to the specific needs of the customer: Pneumatic grippers, suction cups, special hooks, and much more.

    Technical specifications

    • Maximum net capacity

      115 kg* (radius 2100 mm)

    • Maximum radius

      3100 mm* (capacity 60 kg)

    • Minimum radius

      400 mm

    • Vertical stroke

      1000 - 1250 - 1500 mm

    • Power supply

      compressed air 0.5÷0.8 MPa (clean, dry, oil-free)

    • Column axis

      continuous 360° rotation

    • Intermediate axis

      max 300° rotation

    • Noise level

      <70 dB

    * Operating air pressure 0.7 MPa, gripping tool not included. Values are indicative and may be adjusted by our technical department to meet specific customer requirements.

  • ATISmirus-100

    Technical specifications

    • Max capacity

      180 Kg

    • Max working radius

      4000 mm

    • Vertical stroke

      2250 mm

    • Offset loads

    mirus 100

    Pneumatic manipulator with articulated rigid arms, offering the perfect balance between lifting capacity and agility.
    Designed for handling loads that are neither too light nor too heavy, excellent in adapting to specific operational needs.
    When combined with a customized gripping tool, it enables the handling of offset products in any direction, without constraints.

    Technical specifications

    • Maximum net capacity

      180 kg* (radius 2900 mm)

    • Maximum radius

      4000 mm* (capacity 100 kg)

    • Minimum radius

      400 mm

    • Vertical stroke

      1500 - 1750 - 2000 - 2250 mm

    • Power supply

      compressed air 0.5÷0.8 MPa (clean, dry, oil-free)

    • Column axis

      continuous 360° rotation

    • Intermediate axis

      max 300° rotation

    • Noise level

      <70 dB

    * Operating air pressure 0.7 MPa, gripping tool not included. Values are indicative and may be adjusted by our technical department to meet specific customer requirements.

    Technical data sheet ATISmirus 100.pdf
  • ATISmirus-200

    Technical specifications

    • Maximum capacity

      260 Kg

    • Max working radius

      3250 mm

    • Vertical stroke

      2250 mm

    • Offset loads

    mirus 200

    Pneumatic manipulator with articulated rigid arms, an enhanced version of the ATISmirus 100 model. Built with the same technical and structural features, it is equipped with an additional pneumatic cylinder to handle greater loads and extended working radius. It can be integrated with a customized gripping system developed according to the specific requirement of the production process.

    Technical specifications

    • Maximum net capacity

      260 kg* (radius 2450 mm)

    • Maximum radius

      3250 mm* (capacity 180 kg)

    • Minimum radius

      400 mm

    • Vertical stroke

      1500 - 1750 - 2000- 2250 mm

    • Power supply

      compressed air 0.5÷0.8 MPa (clean, dry, oil-free)

    • Column axis

      continuous 360° rotation

    • Intermediate axis

      max 300° rotation

    • Noise level

      <70 dB

    * Operating air pressure 0.7 MPa, gripping tool not included. Values are indicative and may be adjusted by our technical department to meet specific customer requirements.

    Technical data sheet ATISmirus 200.pdf

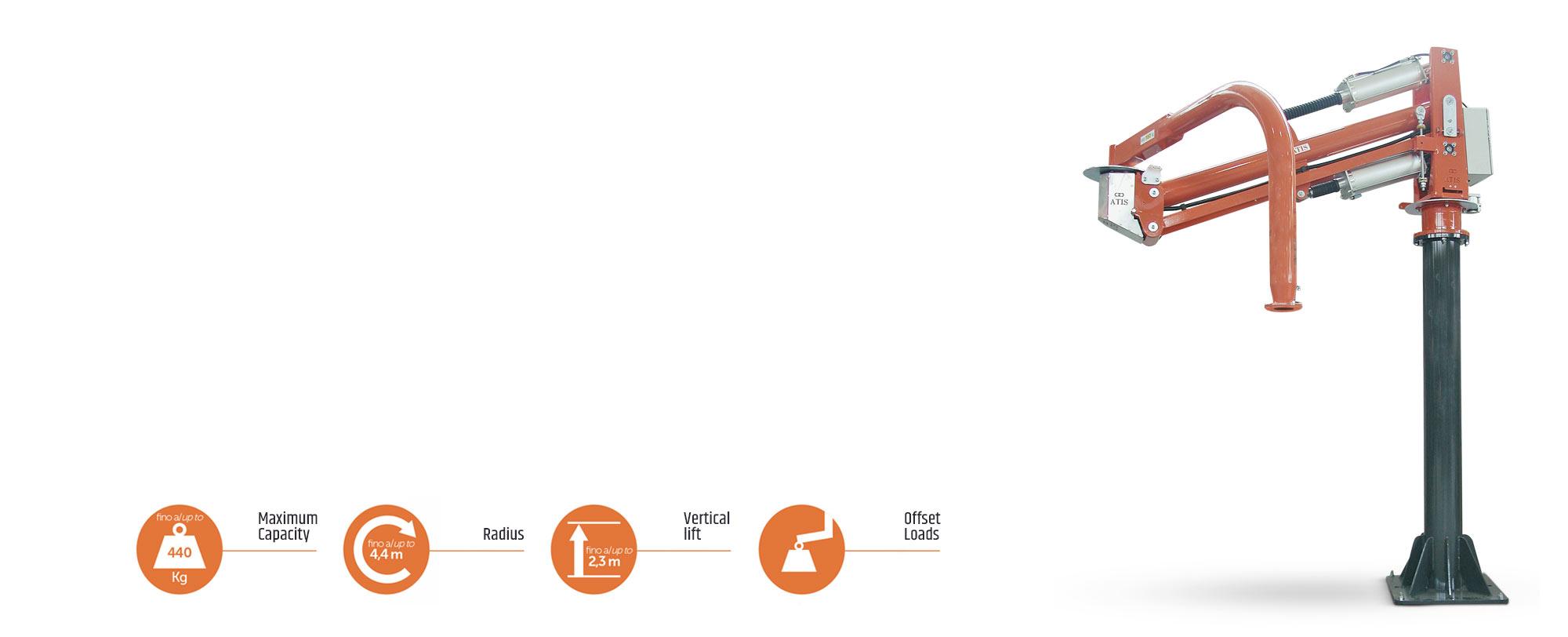

  • ATISmirus-300

    Technical specifications

    • Maximum capacity

      440 Kg

    • Working radius

      4400 mm

    • Vertical stroke

      2250 mm

    • Offset loads

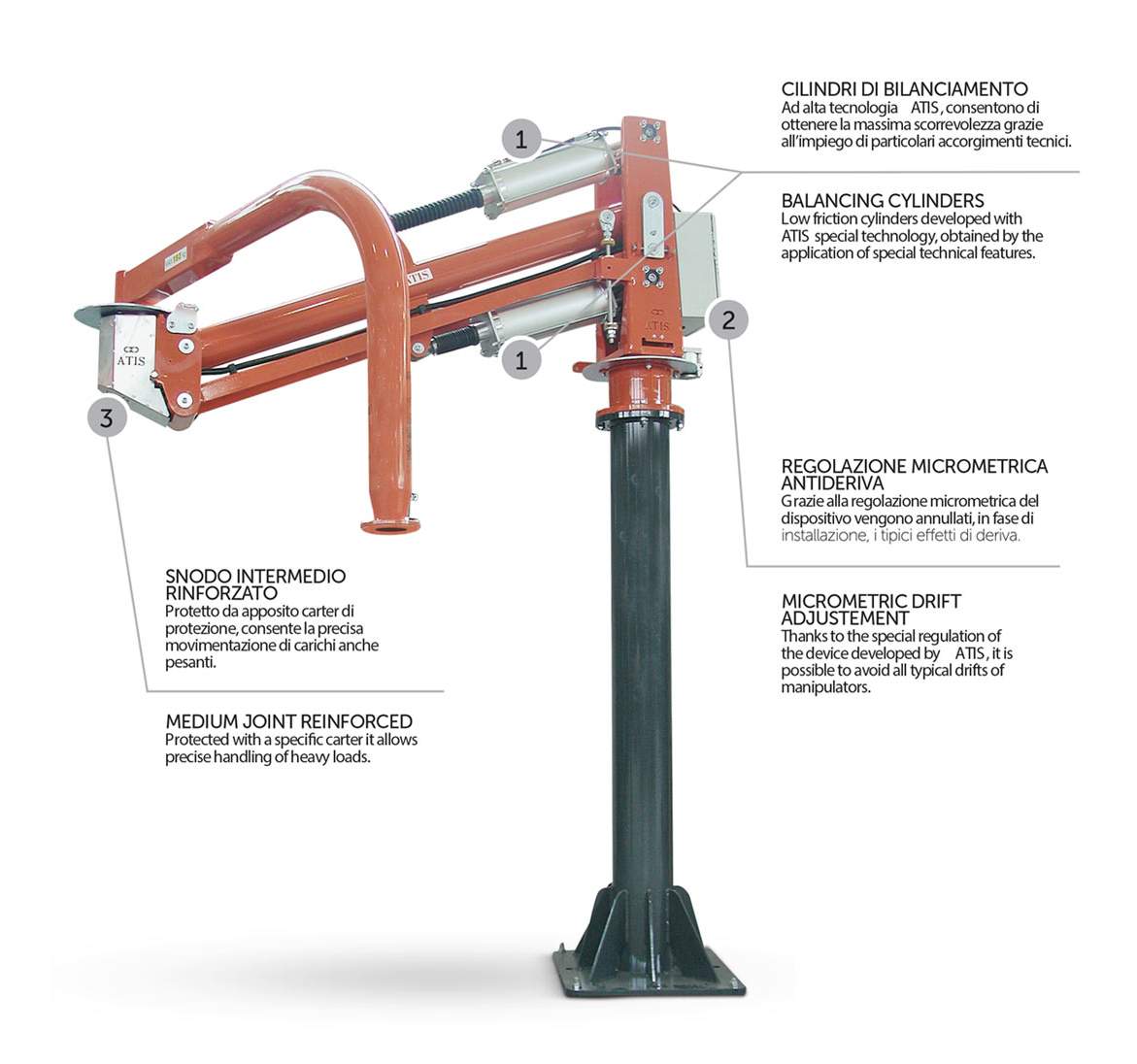

    mirus 300

    Pneumatic manipulator with articulated rigid arms, the ideal solution for heavier loads.
    Designed for higher performance, it maintains maximum precision and ergonomic movement even under the most demanding conditions. Reliability and safety are the key qualities of this manipulator, which can be adapted to specific handling needs through the application of dedicated gripping tools.

    Technical specifications

    • Maximum net capacity

      440 kg* (radius 2450 mm)

    • Maximum radius

      4400 mm* (capacity 200 kg)

    • Minimum radius

      500 mm

    • Vertical stroke

      1500 - 1750 - 2000 - 2250 mm

    • Power supply

      compressed air 0.5÷0.8 MPa (clean, dry, oil-free)

    • Column axis

      continuous 360° rotation

    • Intermediate axis

      max 300° rotation

    • Noise level

      <70 dB

    * Operating air pressure 0.7 MPa, gripping tool not included. Values are indicative and may be adjusted by our technical department to meet specific customer requirements.

    Technical data sheet ATISmirus 300.pdf
  • mirus-500-ATIS-senza-filo

    Technical specifications

    • Maximum capacity

      600 Kg

    • Working radius

      4000 mm

    • Vertical stroke

      2100 mm

    • Offset loads

    mirus 500

    Pneumatic manipulator with articulated rigid arms, the ideal solution for the heaviest loads.
    Engineered for superior performance, it consistently delivers precision and ergonomic movement, even in the most critical conditions. Reliability and safety define this manipulator, which can be customized to meet specific handling requirements through the use of customized gripping equipment.

    Technical specifications

    • Maximum net capacity

      600 kg* (radius 2700 mm)

    • Maximum radius

      4000 mm* (capacity 300 kg)

    • Minimum radius

      700 mm

    • Vertical stroke

      1400 - 1650 - 1850 - 2100 mm

    • Power supply

      compressed air 0.5÷0.8 MPa (clean, dry, oil-free)

    • Column axis

      continuous 360° rotation

    • Intermediate axis

      max 300° rotation

    • Noise level

      <70 dB

    * Operating air pressure 0.7 MPa, gripping tool not included. Values are indicative and may be adjusted by our technical department to meet specific customer requirements.

    Technical data sheet ATISmirus 500.pdf

Choose your manipulator mirus

ATISmirus-80

mirus 80

115 kg* (radius 2100 mm)
3100 mm* (capacity 60 kg)
400 mm
1000 - 1250 - 1500 mm
ATISmirus-100

mirus 100

180 kg* (radius 2900 mm)
4000 mm* (capacity 100 kg)
400 mm
1500 - 1750 - 2000 - 2250 mm
ATISmirus-200

mirus 200

260 kg* (radius 2450 mm)
3250 mm* (capacity 180 kg)
400 mm
1500 - 1750 - 2000- 2250 mm
ATISmirus-300

mirus 300

440 kg* (radius 2450 mm)
4400 mm* (capacity 200 kg)
500 mm
1500 - 1750 - 2000 - 2250 mm
mirus-500-ATIS-senza-filo

mirus 500

600 kg* (radius 2700 mm)
4000 mm* (capacity 300 kg)
700 mm
1400 - 1650 - 1850 - 2100 mm
  • Maximum net capacity
  • Maximum radius
  • Minimum radius
  • Vertical stroke

* Operating air pressure 0.7 MPa, gripping tool not included. Values are indicative and may be adjusted by our technical department to meet specific customer requirements.
