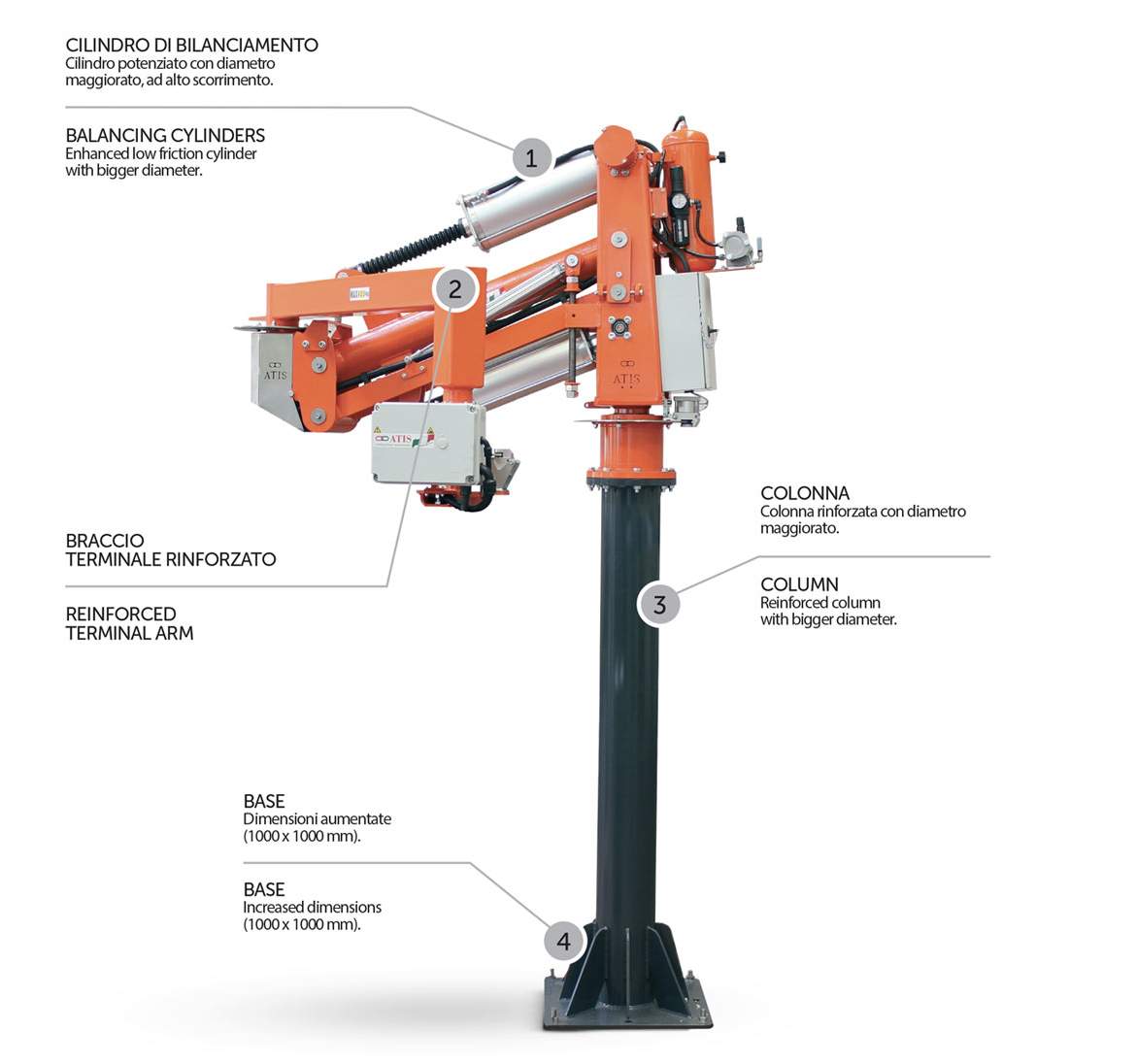

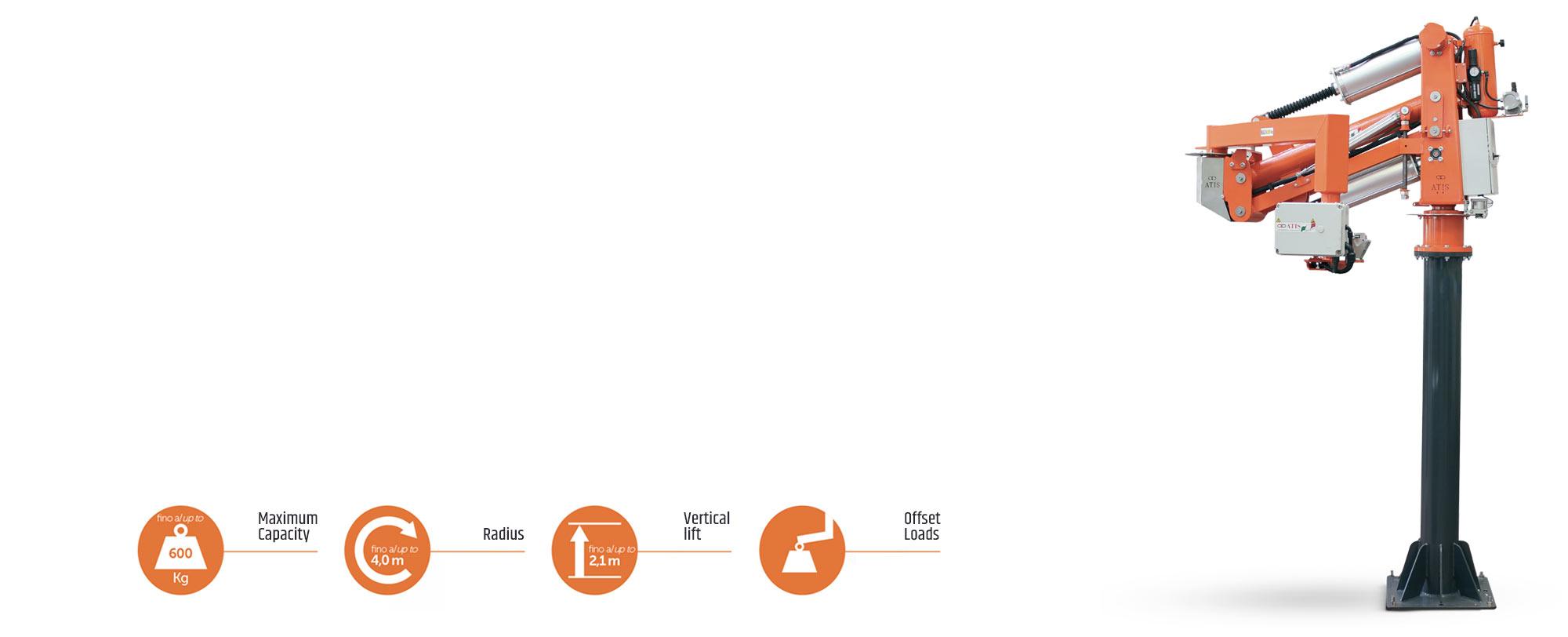

Pneumatic rigid arm manipulator with swivel arms, is the evolution of the previous model with higher capacity. Provided with improved technical and structural features, it is equipped with an enhanced cylinder in order to handle very heavy loads and to achieve longer radiuses.
Customised gripping tools are developed according to customer's requests and the higher capacity allows even more specific personalization.
|Transmission:||through a parallelogram and terminal arm|
|Configuration:||column mounted fixed to the floor, column mounted on self standing base plate, fixed overhead, overhead on rails|
|Net capacity:||600 kg * (radius 2700 mm) / 1323 lbs* (radius 8 ft 1019/64 in)|
|Radius Max:||4000 mm* (max load 300 kg) / 13 ft 131/64 in* (max load 661 lbs)|
|Radius Min:||400 mm / 1 ft 33/4 in|
|Vertical stroke:||1500 - 1750 - 2050 - 2300 mm / 4 ft 111/16 in - 5 ft 857/64 in - 6 ft 845/64 in - 7 ft 635/64 in|
|Supply:||from 0.5 to 0.8 MPa /from 73 to 116 psi of clean, dry and oil free compressed air|
|Column axle:||360° continuous rotation|
|Intermediate axle:||max 300° rotation|
|Noise level:||<70 dB|
* Operating air pressure 0.7 MPa / 102 psi, gripping tool not included. The values are purely indicative and may be increased and decreased from our technical department to suit specific customer requirements.
