The basic principle, on which our pneumatic manipulators are designed, is quality. This element is correctly integrated into our 3D engineering design management system. Our engineering designs are done with dedicated 3D software for process efficiency. The whole process starts with customer's product that our design engineers use to quantity the bespoke solution and definition of gripping tool design.
Our manipulators are developed out of the real needs of operators. Essentially, customer's satisfaction is the essence of ATIS manipulators. The design approach renders ATIS manipulator and operator all one body because product handling could be done without handle and push buttons, but simply by using the product itself to move about. In case of fragile or hot product, the gripping tool will come with a handle and control push buttons ergonomically positioned to suit operator's need.
All these attributes aim essentially at improvement of safety at workplace, productivity growth, reduction in injuries to operators and reduction in damage to products, consequently an increase in company profits. Introducing ATIS manipulators in workplaces is a true step to achieve all the above attributes.
The handling needs of manufacturing industries are so vast and different; in order to meet these various needs, ATIS came up with wide range of manipulators such as the following:

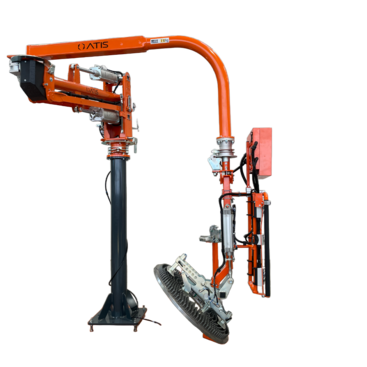

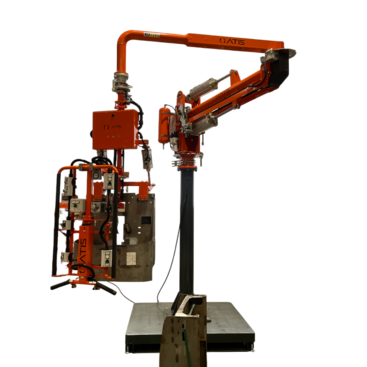

ATIS manipulators with articulated rigid arms and parallelogram, belong to ATISmirus series, designed specifically to handle offset loads. The safe lifting capacity goes up to maximum of 600kg (1323 lbs). These manipulators can be supplied with different bespoke gripping tool such as gripping jaws, suction tool, magnet, and hook unit. It could be equipped with manual and pneumatically powered rotation and / or inclination.
This series of pneumatic manipulators come with articulated rigid arms and double steel cables.
These manipulators, ATISacer series can be supplied with bespoke gripping tool, designed to meet the customer's specific requirements. They can lift load up to maximum of 150kg (330 lbs). These manipulators can be supplied with different bespoke gripping tool. They are most suitable for restricted or tight working areas.
This series of pneumatic manipulators, ATISlinear series, are compact. They possess big lifting capacity and usually go on overhead tracks. They can be equipped with bespoke gripping tool of a complex nature with manual or pneumatically powered rotation and / or inclination.
Series of light weight pneumatic manipulators, ATISferax series, which are pretty compact, responsive and precise. Suitable for applications in restricted and tight working areas with intensive process time cycle.
Pneumatic manipulators with articulated rigid arms and parallelogram for vertical movement. Designed to guarantee maximum and precise handling of loads. Ideal for handling offset loads or rotation and inclination of the products to handle. Suitable also for handling heavy loads.
Steel cable pneumatic manipulators for handling balanced loads. They are distinguished from the rest because of their rapidity, thanks to the vertical excursion of the double steel cables. Lightweight, compact and ideal to solve many handling problems, especially within restricted working areas.
Overhead trolley mounted pneumatic manipulators on tracks, characterised for stable vertical movement on a linear guide. Lightweight and compact. It is suitable for working areas, where restricted spaces dictate the needs for vertical movements. An ideal system for working areas without room for manoeuvre or with obstructions.
Lever actionable pneumatic manipulators with controllable vertical movement and render load handling easy, natural and highly precision. With their lightness and astonishing agility, handling time in the most extreme process cycles can be improved and significant reduction to stress suffer by operators.
